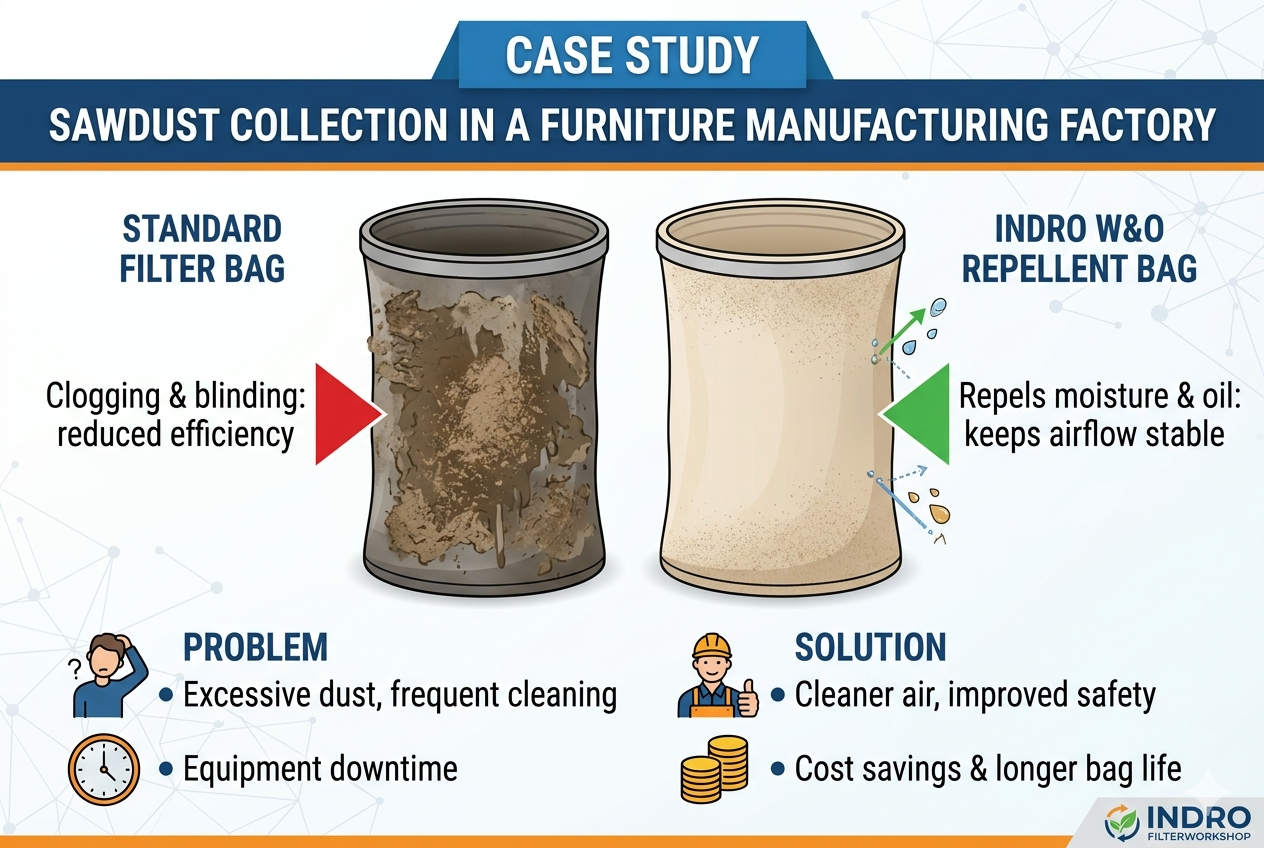

Case Study: Sawdust Collection in a Furniture Manufacturing Factory
Client Overview
A large-scale woodworking and furniture factory specialized in hardwood processing (oak and maple) was facing excessive airborne dust levels. The fine dust generated by sanding and CNC routing was not being effectively captured by their existing 30-micron bags, leading to respiratory concerns for staff and potential fire hazards from static buildup.
Challenge
- Fine Particulate Escape: Hardwood dust often includes particles as small as 1–5 microns, which bypass standard coarse filters.
- Static Risk: Dry wood dust moving through collection ducts creates high static electricity, increasing the risk of combustible dust explosions.
- Maintenance: Standard bags were clogging quickly (blinding), requiring frequent shutdowns for manual cleaning.
Solution
INDRO Filterworkshop provided custom-engineered dust collector filter sleeves designed for high-efficiency woodworking environments.
- Bag Material: Anti-static Polyester Needle Felt (500-550 g/sm).
- Why: Polyester balances durability with high air permeability. The "anti-static" property is achieved via conductive carbon fibers woven into the felt, which safely dissipates static charges to prevent ignition.
- Finish: Singed and Calendered. This smooth surface finish allows for better dust cake release during pulse-jet cleaning, preventing "blinding".
- Bag Size: Diameter 150mm x Length 3000mm (Approx. 6" x 118").
- This standard industrial size was selected to fit the factory’s existing pulse-jet baghouse housing, providing a total filtration area of roughly 1.4 square meters per bag.
- Micron Rating: 1.0 Micron (µm).
- A 1-micron rating was critical for capturing the fine sanding dust that previously escaped into the workshop air.
Results
- Air Quality Improvement: Testing showed a 99.9% reduction in airborne fine dust, bringing the workshop well within OSHA safety standards.
- Reduced Fire Risk: The anti-static fibers successfully eliminated static "shocks" near the collection bins.
- Extended Life: The singed surface treatment allowed for more efficient pulse-jet cleaning, extending the effective bag life by 12 months compared to the previous standard bags.
In high-humidity woodworking environments, standard filter bags can "blind" as moisture mixes with dust to form a sticky mud. INDRO Filterworkshop offers specialized treatments and sizing to solve this.
1. Water & Oil Repellent (Hydrophobic/Oleophobic) Treatments
For environments with moisture or oil mists (e.g., from machine lubrication), INDRO applies a fluorocarbon resin impregnation.
- How it Works: The treatment creates a molecular film around individual fibers.
- Key Benefits:
- Prevents "Mudding": Stops water and oil from soaking into the felt, keeping dust on the surface for easy release.
- Stable Airflow: Prevents sharp increases in differential pressure that usually occur when bags get damp.
- Longevity: Reduces fiber degradation from moisture and chemical exposure, extending service life by over 30%.
2. Custom Sizing & Structure
INDRO can manufacture bags to any length to fit unique or OEM baghouse systems.
- Standard Diameters: 100mm, 125mm, 130mm, 150mm, 180mm, 250mm, and more.
- Lengths: Any length is customizable (standard industrial lengths range up to 10 meters).
- Top/Bottom Configurations:
- Top: Beaded snap band, raw top, hemmed top, or corded/rubber O-ring.
- Bottom: Disc bottom, flat sewn, or reinforced cuff bottom.
3. Recommended Material Specs for Woodworking
| Feature |
Recommendation |
| Base Material |
Anti-static Polyester Needle Felt |
| Weight |
500g/m² - 550g/m² |
| Surface Finish |
Singed, Calendered, Heat Set |
| Special Treatment |
Water & Oil Repellent (optional) |
| Max Temperature |
Up to 130°C (266°F) |
