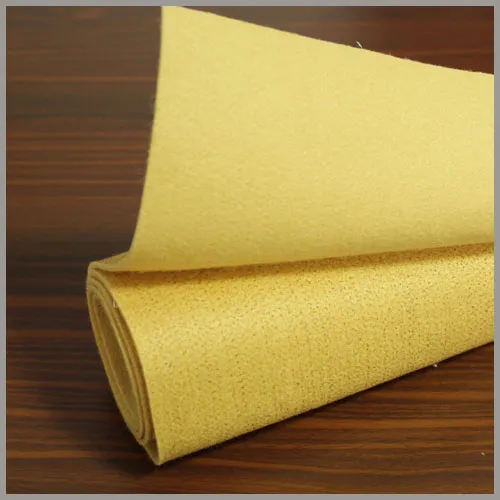

P84 Filter Media / P84 Needle Punched Felt/ P84 Filter Felt/ P84 Filter Fabric/ P84 Filter Roll
1. Detailed Description Of P84 Filter Media
Weight: 350-650g
Working Temperature: 260-300℃
Basic Finish treatment: singed, calendered, heat set
Functional treatment: water and oil repellent, anti-static, ptfe lamination or membrane.
Standard filter roll width: 2.1m
Max filter roll width: 2.3m
Roll Length: 50m, 100m as per customer’s requirement
2. Features Of P84 Filter Media
-High temperature resistant
-Made of 100% p84 fiber
-Acid resistance: good
-Alkali resistance: Fair
-Abrasive resistance: good
3. Technical Data of P84 Filter Media
|
500gsm P84 needle punched felt |
|
|
Construction |
Needle felt |
|
material: ： |
P84 |
|
Srim support: |
P84 |
|
Felt Area Weight |
500g/m2(±5%) |
|
Thickness |
2.1mm |
|
Mean Air Permeability |
10-15 m3/m2/min@12.7mmH2O |
|
Breaking Strength-MD（warp） |
800 N / 125px |
|
Breaking Strength-CMD（weft） |
1200 N / 125px |
|
Breaking Elongation( N/125px)-MD（warp） |
5% |
|
Breaking Elongation( N/125px)-CMD（weft） |
30% |
|
Dry Shrinkage MD（240℃warp） |
＜1% |
|
Dry Shrinkage CMD（240℃weft） |
＜1% |
|
Operating Temperatures |
260℃ |
|
Recommended Maximum Surge |
300℃ |
|
Finish |
Singed, calendered, heatset |
4. Applications Of P84 Filter Media
As filter media, P84 Filter Media is widely use in Industry of Steel, Chemical, Waste incineration, Cement, Construction material, Thermoelectricity.
