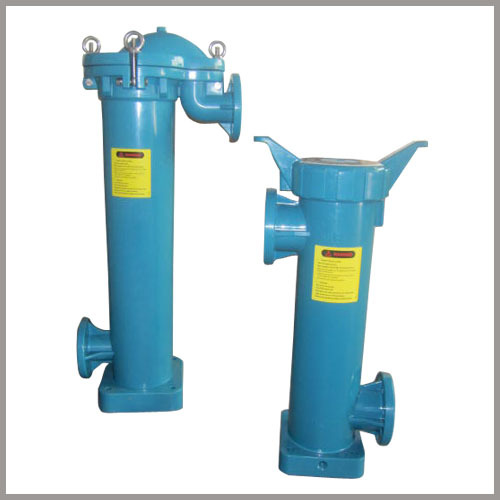

SIZE 2# AND 5# PP Plastic Bag Filter Housings
1. Detailed Description Of PP Plastic Bag Filter Housings
Size of the filter bag: Size 5# and 2#
100% PP (polypropylene) material
Treatment: Integrally cast polypropylene
2. Features Of PP Plastic Bag Filter Housings
-100% PP (polypropylene) material
-PP has excellent chemical resistance, widely used for acid or alkali condition
-one batch forming frame, no seams, precise dimension
-high quality, high effective, economical and practical product
3. Technical Data of PP Plastic Bag Filter Housings
SEPF PP Plastic Bag Filter Housings
|
PP Plastic Bag Filter Housings |
||
|
Model |
SIIC-BHSE105PP |
SIIC-BHSE102PP |
|
Size of the bag |
05# |
02# |
|
Filter area: |
0.2 |
0.5 |
|
Max water flow rate: |
18 |
40 |
|
Operating pressure |
6 |
6 |
|
Max temperature |
85 |
85 |
|
Vent: |
1 |
1 |
|
Material |
PP |
|
|
Treatment |
Integrally cast polypropylene |
|
Filter bag Specification
|
Size |
Maxflow(m3/h) |
Fillter Area(m2) |
Volume（L） |
Diameter（Inch） |
Length （Inch） |
|
02# |
40 |
0.50 |
17.00 |
7 |
32 |
|
05# |
18 |
0.20 |
3.80 |
6 |
22 |
4. Applications Of PP Plastic Bag Filter Housings
Widely used in electronics, semiconductor, chemical, pharmaceutical, food, beverages, paints, paper industry, automobile manufacturing, inks, resins, water treatment and other fields.
Widely used for acid or alkali condition.
Shanghai Filterworkshop Co., Ltd(Shanghai Indro Industry Co., Ltd) is one of China liquid filter bag housing manufacturers and supplies, is making and supplying China liquid filter elements, liquid filter bag housing, liquid filter housing, SS304 SS316 filter bag housing, single bag filter housing, pp plastic bag filter housing, multi-bags filter housing, side entry bag filter housing, top entry liquid bag filter housing, cartridges filter housing, multi-core filter housing with good quality and good prices.
