Filter Vessels Explained: Design, Materials, and Operating Pressure
Views : 12
Author : filterworkshop.com
Update time : 2026-01-20 15:48:39
Filter vessels are critical components in industrial filtration systems, providing the structural housing that contains filter elements and ensures safe, efficient separation of solids from liquids or gases. From water treatment and chemical processing to food & beverage and pharmaceuticals, the performance of a filtration system is heavily influenced by the design, material selection, and operating pressure of the filter vessel. This article explains how filter vessels work, how they are designed, what materials are commonly used, and why operating pressure is a key factor in system safety and efficiency. 1. What Is a Filter Vessel?
A filter vessel is a pressure-rated enclosure that holds one or multiple filter elements—such as filter bags, cartridges, or baskets—while fluid flows through them. Its primary functions are to:
Direct the process fluid through the filter media
Withstand internal pressure and temperature
Seal the filtration system to prevent leaks
Allow safe access for element replacement and maintenance
Unlike the filter media itself, which performs the actual filtration, the vessel ensures mechanical strength, flow distribution, and compliance with safety standards.
2. Basic Components of a Filter Vessel
Although designs vary, most filter vessels share several common components:
Shell (Body): The main pressure-containing structure
Cover or Lid: Provides access to internal filter elements
Inlet and Outlet Nozzles: Control fluid entry and exit
Internal Support System: Baskets, cartridge supports, or tie rods
Sealing System: O-rings, gaskets, or metal seals
Drain and Vent Ports: For safe depressurization and cleaning
The integration and quality of these components determine not only filtration performance but also operator safety and ease of maintenance.
3. Filter Vessel Design Types 3.1 Bag Filter Vessels
Bag filter vessels are widely used for medium to high flow rates and moderate filtration accuracy. They typically accommodate one or multiple filter bags and are valued for their simplicity and cost-effectiveness. Key features:
High dirt-holding capacity
Quick bag change-out
Suitable for pre-filtration and bulk solids removal
3.2 Cartridge Filter Vessels
Cartridge filter vessels house pleated or depth filter cartridges and are designed for higher filtration efficiency and finer micron ratings. Key features:
Precise filtration (down to sub-micron levels)
Multiple cartridges per vessel for large flow rates
Common in pharmaceuticals, electronics, and high-purity processes
3.3 Basket and Strainer Vessels
These vessels use metal baskets or strainers to remove large particles and protect downstream equipment. Key features:
Low pressure drop
Reusable elements
Often used as coarse pre-filters
4. Design Considerations for Filter Vessels 4.1 Flow Rate and Pressure Drop
The vessel must be sized to handle the required flow rate without excessive pressure loss. Poor flow distribution can lead to uneven loading of filter elements, reducing service life and efficiency. 4.2 Filtration Area
Adequate filtration area ensures longer operating cycles and stable pressure drop. Multi-cartridge vessels are commonly used when high flow rates and long run times are required. 4.3 Ease of Maintenance

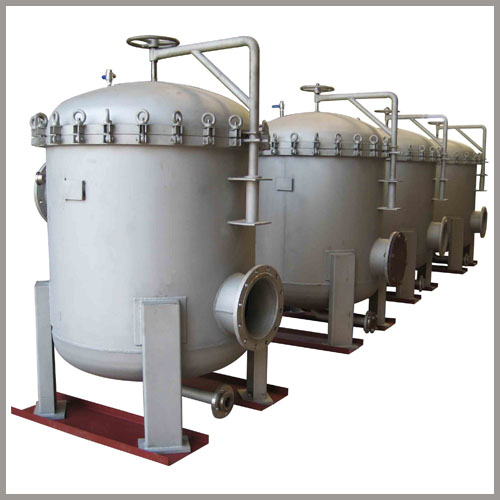

Designs with quick-opening closures, swing bolts, or davit-assisted lids reduce downtime and improve operator safety during maintenance. 4.4 Compliance and Standards
Industrial filter vessels are often designed according to recognized codes such as:
ASME Section VIII (Pressure Vessels)
PED (Pressure Equipment Directive)
GB or other regional standards
Compliance ensures structural integrity and legal acceptance in regulated markets.
5. Materials Used in Filter Vessels
Material selection directly affects durability, corrosion resistance, cleanliness, and cost. 5.1 Carbon Steel
Carbon steel vessels are commonly used in non-corrosive applications such as oils, fuels, and some industrial water systems. Advantages:
Cost-effective
High mechanical strength
Limitations:
Susceptible to corrosion
Requires coatings or linings in aggressive environments
5.2 Stainless Steel (304 / 316 / 316L)
Stainless steel is the most popular material for filter vessels in demanding industries. Advantages:
Excellent corrosion resistance
High cleanliness and easy sterilization
Suitable for food, beverage, pharmaceutical, and chemical applications
316L stainless steel is particularly favored where chloride resistance and low carbon content are required. 5.3 Special Alloys
For highly corrosive or extreme applications, materials such as Hastelloy, Duplex stainless steel, or titanium may be used. Applications include:
Strong acids and solvents
High-temperature or high-pressure processes
Offshore and marine environments
6. Operating Pressure: Why It Matters 6.1 Understanding Operating Pressure
Operating pressure refers to the internal pressure the filter vessel experiences during normal operation. It includes:
Pump discharge pressure
System backpressure
Pressure fluctuations during start-up and shutdown
The vessel must be designed with an adequate safety margin above the maximum operating pressure. 6.2 Design Pressure vs. Operating Pressure
Operating Pressure: Actual pressure during filtration
Design Pressure: Maximum pressure the vessel is engineered to safely withstand
Design pressure is always higher than operating pressure to account for pressure surges, temperature effects, and long-term fatigue. 6.3 Pressure Ratings and Safety
Common pressure ratings for industrial filter vessels range from:
6 bar (90 psi)
10 bar (150 psi)
16 bar (230 psi)
Higher ratings for specialized systems
Over-pressurization can lead to seal failure, deformation, or catastrophic rupture, making correct pressure selection critical for safety.
7. Temperature and Pressure Relationship
Operating temperature has a direct impact on pressure ratings. As temperature increases, material strength generally decreases, reducing the allowable working pressure.
Designers must consider:
Maximum process temperature
Thermal expansion of materials
Compatibility of seals and gaskets
Ignoring temperature effects can compromise vessel integrity and lead to premature failure.
8. Sealing and Closure Systems Under Pressure
The sealing system plays a vital role in maintaining pressure integrity. Common sealing options include:
Elastomer O-rings: Cost-effective, easy to replace
PTFE gaskets: Chemical resistance and wide temperature range
Metal-to-metal seals: Used in high-pressure or high-temperature applications
Quick-opening closures must be carefully engineered with safety interlocks to prevent opening under pressure.
9. Inspection, Testing, and Maintenance
To ensure safe operation, filter vessels typically undergo:
Hydrostatic pressure testing
Visual and dimensional inspection
Weld inspection (NDT if required)
Regular maintenance includes checking seals, monitoring pressure drop, and inspecting internal supports. Proper inspection routines extend vessel life and reduce unplanned downtime.
10. Choosing the Right Filter Vessel
Selecting the correct filter vessel involves balancing multiple factors:
Flow rate and filtration accuracy
Operating pressure and temperature
Chemical compatibility
Regulatory requirements
Maintenance and lifecycle cost
A well-designed vessel not only protects the filter elements but also ensures system safety, stable operation, and long-term reliability.
Conclusion
Filter vessels are far more than simple housings; they are engineered pressure equipment that directly influence filtration performance and operational safety. Understanding vessel design, material options, and operating pressure helps engineers and plant managers make informed decisions that reduce risk and improve efficiency. By selecting the right filter vessel for the application, industries can achieve reliable filtration, longer service life, and compliance with stringent safety standards.
